Dynamic Documents in RStudio

# Dynamic Documents in RStudio
## LSA 2019
### Bradley McDonnell<br/>University of Hawai‘i at Mānoa
### 2019/01/03 (updated: 2019-01-03)

---

# Dynamic documents

- "Dynamic documents" was coined by Yihui Xie for the R package `knitr` based on earlier versions of `Sweave`
- `knitr` allows us to create documents in various formats (e.g., LateX, Markdown) with various outputs (HTML slides, `Shiny` apps, PDF documents), all of which combines Markup and executable code.

![](https://d33wubrfki0l68.cloudfront.net/61d189fd9cdf955058415d3e1b28dd60e1bd7c9b/b739c/lesson-images/rmarkdownflow.png)

- In the breakout section, we'll primarily work with **R Markdown**, an *R-flavor* of traditional Markdown.

---

---

# Benefits & drawbacks of RMarkdown

.pull-left[
- It's simple
- It's portable
- Produces reproducible documents
- Outputs to various static and dynamic formats
- ...
]

.pull-right[
- Few native formatting options
  - e.g., interlinear glossed examples not straightforward
- Yet another flavor of Markdown
- Not widely used in linguistics
- ...
]

---

# Breaking down the components of a dynamic document with RMarkdown

Dynamic documents are composed of:

1. YAML header
2. R code chunks
3. Text

---

# YAML header
The YAML header contains...
  1. **metadata**
    - author
    - title
    - date
  1. **output formats**
    - HTML
    - Markdown
    - PDF
    - Word

Here's a basic example...

```yaml
---
title: "A basic example"
author: "Bradley McDonnell"
date: "12/29/2018"
output: html_document
---
```

---

# YAML header

The YAML header can be quite complicated.
- The `output` can contain a number of options (which can be quite helpful!).

```yaml
---
title: "Dynamic Documents in RStudio"
subtitle: "LSA 2019"
author: "Bradley McDonnell<br/>University of Hawai‘i at Mānoa"
date: "2019/01/03 (updated: 2019-01-03)"
output:
  xaringan::moon_reader:
    lib_dir: libs
    nature:
      highlightStyle: github
      highlightLines: true
      countIncrementalSlides: false
---
```

---

# Code chunks

- Code chunks contain the R code that we want to execute.

````md
The plot below shows a slight increase in intensity in the final syllable of the word.

```{r boxplot, echo=TRUE, comment="#", message=FALSE, fig.height=6}

library(tidyverse)

# Loading the dataframe
pse_stress <- read_tsv("data/pse-stress-simplified.csv") %>%
                          mutate(Word = fct_recode(Word),
                                Position = fct_recode(Position),
                                Vowel = fct_recode(Vowel),
                                Weight = fct_recode(Weight),
                                Focus = fct_recode(Focus),
                                Final = fct_recode(Final)
                                )

# A simple boxplot of intensity
int <- ggplot(pse_stress, aes(Position, Intensity))
int + geom_boxplot()
```
````

---

# Code chunks

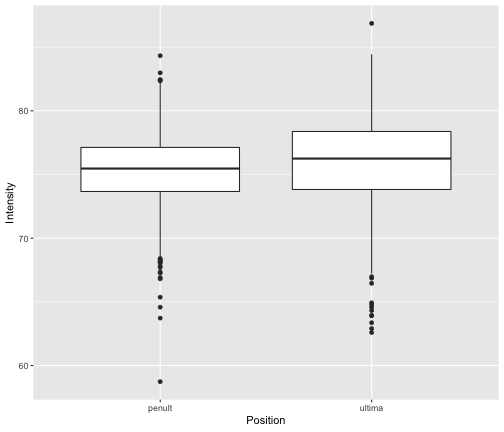

The plot below shows a slight increase in intensity in the final syllable of the word.

![](dynamic_docs_files/figure-html/boxplot-1.png)

---

# Anatomy of a code chunk

- Code chunks are marked by ` ``` ` at the start and end of the chunk.
- Followed by the specification of the programming language,
  - `r` or `{r}` in our case
  - Optionally followed by a name for the code chunk, and
  - many options for how the code chunk is treated.
- Finally, the code itself!

````markdown
```{r boxplot, echo=FALSE, comment="#", message=FALSE, fig.height=6}

# A simple boxplot of intensity
int <- ggplot(pse_stress, aes(Position, Intensity))
int + geom_boxplot()

```
````

**Note it's also possible to set Global Options that apply to all code chunks.**

````markdown
```{r setup, include=FALSE}
knitr::opts_chunk$set(echo=FALSE)
```
````

---

# Text

- The text would ideally be R Markdown...
  - but it's possible to also use LaTeX
- Or it's possible to mix in HTML formatting
  - and/or LaTeX code in with R Markdown

---

# Questions?

???

Go to an example and open it up.
